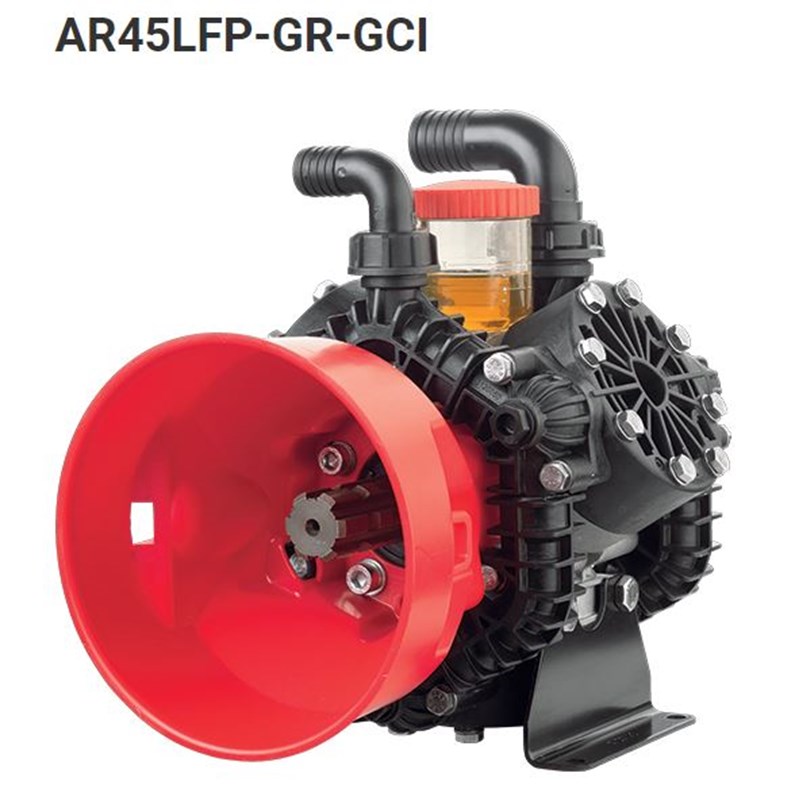

AR 45 Diaphragm Pump w/ Gear Reduction
Manufacturer Part Numbers: AR45LFP-GR-GCI
SKUs: AR45LFP-GR-GCI
SKUs: AR45LFP-GR-GCI
Package Dimensions:
Height: 15.00 Inches
Width: 15.00 Inches
Length: 15.00 Inches
Weight: 25 Lb(s) 0 Oz
MSRP
$1954.90
Retail Price
$1,236.56
QTY:
Warning California Proposition 65 Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov
AR 45 Diaphragm Pump w/ Gear Reduction #AR45LFP-GR-GCI
This model pump is what AR North America recommends for softwashing
Annovi Reverberi AR45LFP-C low pressure diaphragm pump. For use in the gardening, softwashing or professional agricultural sectors.
- Semi-hydraulic three-diaphragm pump, for use with aggressive products in low pressure systems
- Parts in contact with the liquids being pumped are: reinforced polypropylene, Kynar and AISI 316 L.
- Three-diaphragm design for smoother operation, lower pulsation and less hammer effect
- Crankcase shell is precision die cast. Splash lubricated oiling system with a clear oil tank for visual oil level checking
- Remote level monitoring sensor on request
- Oil drainage stopper
- Piston and ring design offers an efficient “oil cushion” system to protect the diaphragm
- New-design diaphragms and keepers prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves offer lower flow resistance and improved volumetric efficiency
- Heavy duty mounting rails, AISI 304 SST fasteners. Drive types: Cardan shaft or keyed solid shaft Available with reduction gearbox for internal combustion engines, pulley fixtures or flanges for hydraulic motors.
Max GPM: 11.4
Max PSI: 290
RPM: 550
HP Power: 2.1
Suction: 35mm
