HN Series Hydro Tek Stationary Hot Water 5.5@3500 #HN35006E3G

HN Series - Hot/Cold/Steam Electric Powered Natural Gas Fired

TeK sheet

5.5gpm @ 3500 psi, 200 degrees, 15hp, 230v, 3ph,  General Pump

Is your cleaning system ready to work anytime you are? With the HN series pressure washer , there is no need to light a pilot, refill the fuel tank, or hunt down a water hose. Simply set the switch to hot or cold and start cleaning. The low speed belt driven pump system is built for reliability. It also features a float tank and full pressure soap injection. The auto ignition burner runs on natural gas or optional liquid propane to help keep the air clean. The open frame design fully encloses the entire pressure washer and allows you full access to all components for efficient preventative maintenance. The stationary design and high output is ideal for in-plant cleaning, car or truck washing, maintenance yards, industrial applications, and equipment repair cleaning at a price that is less than you might expect.

Features:

Ready to Work when you are:

No need to fill fuel tanks or hunt down a water supply when machine is directly plumbed into natural gas and water lines. The pressure washer
can be housed indoors, away from the elements, while locating the wash station remote outdoors.

Clean and Efficient Heating System:

24v automatic electronic ignition on low emission natural gas burner. Liquid Propane conversion option is available on any model.

SpiraLast™ Coil:

The coil is a Hydro Tek manufactured SpiraLast™ heating coil. Robotically fused ½” schedule 80 steel pipe is cold rolled to protect the steel pipe from fatigue and the spiral coil is then surrounded by ceramic insulation and stainless enclosure with double-wall end caps. Check out our lifetime coil warranty.

Belt Driven pump:

Low RPM drive – cooler, quieter, continuous duty performance. These industrial triplex pumps feature ceramic plungers for long life. EZ
Align™ pump rail system for belt tensioning with a simple adjustment bolt.

NEMA4 Water Tight Electrical Box:

ETL certified to UL1776 Class 2 for use in wash-down area, exceeds industry standards. Special Hydro Tek control box features easy to
use controls and provides instant access to electronics. Standard diagnostic indicators ensure optimal system performance. Dual voltage switch on most 230v models allows you to simply flip a switch to change to 208v power supply.

Bypass Cool System:

Worry free pump cooling system prevents pump from overheating with system designed pump bypass feature.

Durable Frame Construction:

Welded, powder coated steel, pro-tect-it frame for durability with rustproof stainless coil wrap and front panels. Stainless steel frame option as well as an option for stainless back and top panels available.

Best in Class accessibility:

Open frame design gives you full access to all components, including EZ Align™ belt tensioning system, electrical box, and burner igniter for
efficient preventative maintenance checks.

More Standard Features:

• Detergent flow metering at full pressure
• Heavy duty industrial motor with standard thermal overload protection.
• Adjustable temperature up to 250°F with steam setting
• Burst disc technology for operator safety
• Rustproof float tank to regulate incoming water ensuring consistent system performance
• Heavy duty hose, wand, and trigger gun and quick connect nozzles
• Remote Ready: Choose an on/off timer remote option or a full function remote option for complete control from the wash site.

**PICTURED WITH STAINLESS STEEL FRAME/PANEL UPGRADE, NOT INCLUDED IN PRICE

*PRICING TOO LOW TO ADVERTISE ONLINE, JUST CALL IN 855-351-9274

No specifications to display at this time.

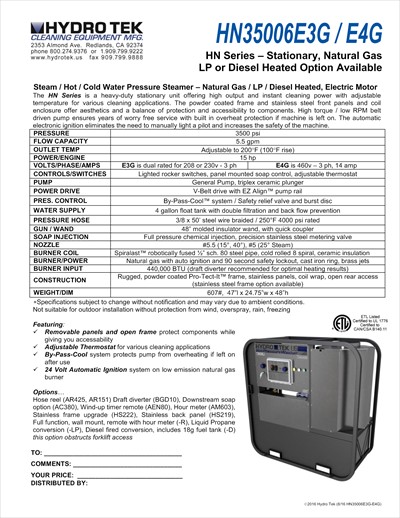

• HN35006E3G-E4G-SPEC-_VBYU
