General Pump TSF Series 10.0gpm@3000psi #TSF2421

Name: General Pump TSF Series 10.0gpm@3000psi #TSF2421
SKU: TSF2421

SKUs: TSF2421

Package Dimensions: Height: 15.00 Inches Width: 10.00 Inches Length: 15.00 Inches Weight: 40 Lb(s) 0 Oz

MSRP $3470.78

Retail Price $965.93

QTY:

Warning California Proposition 65 Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Adding this item to your cart will qualify your order for free shipping.

Shipping Policies

General Pump Solid Shaft TSF Series #TSF2421

Standard Features

GPM - 10.0
PSI - 3000
RPM - 1450
Bore - .945 in./24mm
Stroke - .826 in./21 mm
HP - 17.1 EBHP
Ship Weight - 40.7 lbs.

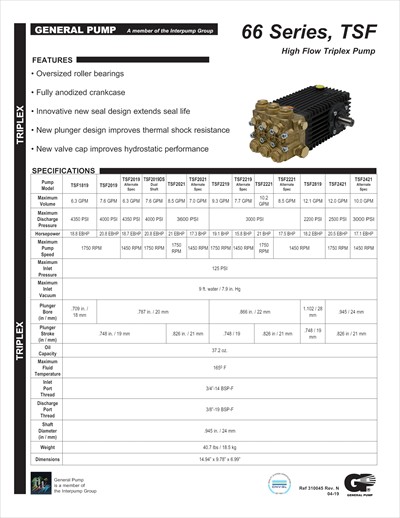

Pump Model	TSF2421
Maximum Volume	12.0 GPM
Maximum Discharge Pressure	2500 PSI
Horsepower	20.5 EBHP
Maximum Pump Speed	1750 RPM
Maximum Inlet Pressure	125 PSI
Maximum Inlet Vacuum	9 ft. water/7.9 in. Hg
Plunger Bore (in/mm)	.945/24 mm
Plunger Stroke (in/mm)	826 in/21 mm
Oil Capacity	37.2 oz
Maximum Fluid Temperature	165° F
Inlet Port Thread	3/4”-14 BSP-F
Discharge Port Thread	3/8”-19 BSP-F
Shaft Diameter (in/mm)	.945 in./24 mm
Weight	40.7 lbs/18.5 kg
Dimensions	14.94” x 9.78” x 6.99”
